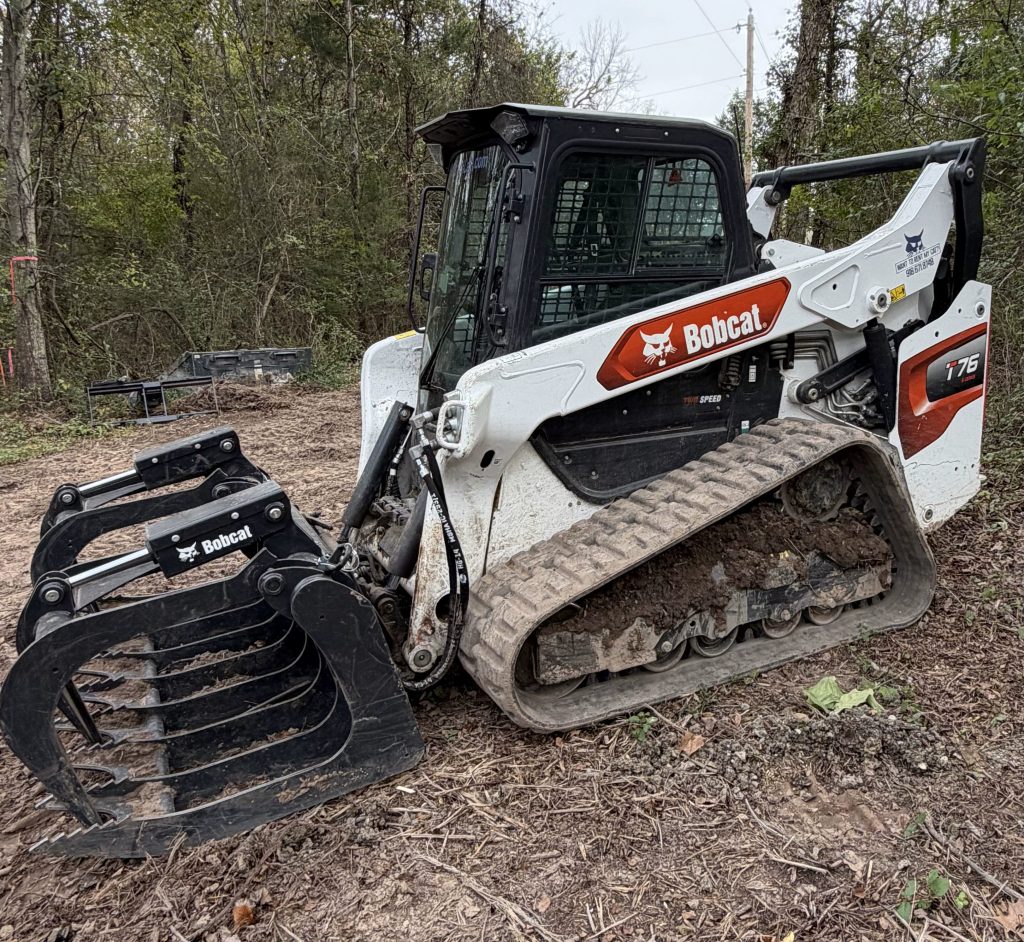

Bobcat T76 Compact Track Loader

Engine: 74 hp Tier 4 diesel, liquid-cooled, turbocharged (inline Bobcat engine with direct-drive system and cast-steel lift arms).
Performance: Rated Operating Capacity (ISO) 2,900 lb; Operating Capacity (50% of tip) ~4,143 lb; Tipping Load ~8,285 lb; Travel Speed 6.8 mph (1-speed or 2-speed low), 9.2 mph (2-speed high); Ground Pressure (standard rubber tracks) 6.2 psi.
Hydraulics: Standard auxiliary flow 23.3 gpm; High-flow option 30.3 gpm; System relief pressure 3,500 psi.
Dimensions: Length without attachment 114 in (or 113.9 in); Length with standard bucket ~147.1 in; Width 73.5 in; Height 81.8–81.9 in; Height to bucket hinge pin 128.3 in; Reach at max height ~36.3 in; Length of track on ground 59.2 in.
Weights & Capacities: Operating weight ~9,592–10,250 lb (varies slightly by
configuration); Fuel tank 31.7 gal.
Other: Optimized lift arm linkage for increased height/capacity; 5-link torsion
suspension; standard joystick controls; heavier-duty hydraulics than the T66 for demanding applications.
