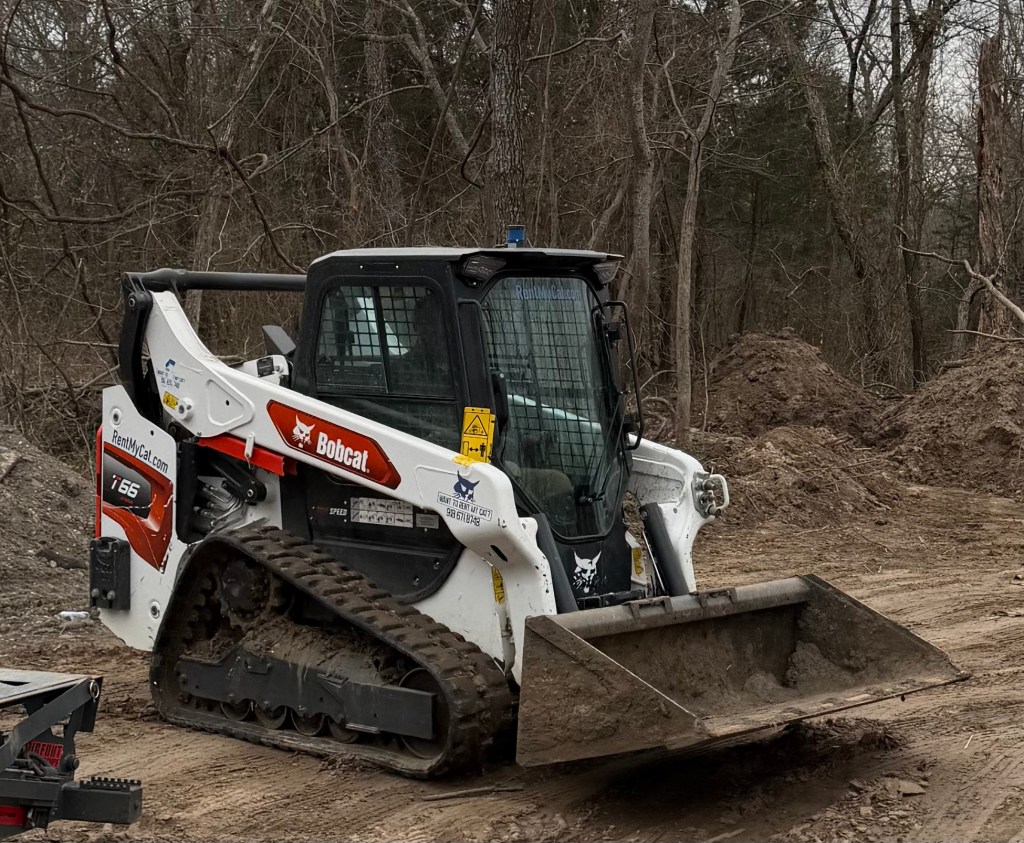

Bobcat T66 Compact Track Loader

Engine: 74 hp Tier 4 diesel, liquid-cooled, turbocharged (inline Bobcat engine with direct-drive system).
Performance: Rated Operating Capacity (ISO) 2,450 lb; Operating Capacity (50%
of tip) ~3,500 lb; Tipping Load ~7,000 lb; Travel Speed 7.2 mph (1-speed or 2-speed
low), 10.2 mph (2-speed high); Ground Pressure (standard rubber tracks) 5.9 psi.
Hydraulics: Standard auxiliary flow 17.6 gpm; High-flow option 26.9 gpm; System
relief pressure 3,500 psi.
Dimensions: Length without attachment 107 in; Length with standard bucket
~134.9 in; Width 67 in (with bucket ~68 in); Height 80.5 in; Height to bucket hinge pin
120 in; Reach at max height 36.7 in; Length of track on ground 54.3 in; Track width
(standard) 12.6 in (optional 15.7 in).
Weights & Capacities: Operating weight ~8,840–8,927 lb; Fuel tank 28.3 gal.
Other: 5-link torsion suspension undercarriage (optional joystick controls, air
conditioning, etc.); Bob-Tach attachment system; designed for powerful breakout forces
and fast cycle times in a compact frame.
